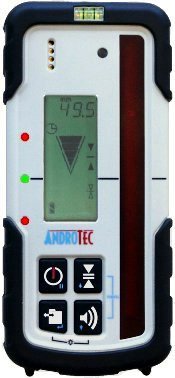

Keypad

---

Power, Accuracy, Memory and
Volume switches

LED's

---

Easy to see Light Emitting
Diodes show position of METOR
relative to the laser beam.
Green for on-grade and
Red for high or low.

Display

---

Shows elevation information,
receiver settings and status

Beeper

---

Fast beeps indicates too high,
Continuous signal is on-grade,
Slow beeps is too low

Bubble Vial Helps to keep METOR leveled for accurate readings

|

Anti-strobe-sensor

---

Detects and and rejects strobe lights

On-grade mark

---

For center on-grade position

X²L Sensor

---

Length: 127 mm

Battery door and latch

---

Waterproof housing holds
two "AA" batteries

Marking notch

---

For center on-grade position.
Top of detector is 80mm
from marking notch

Captive screw threads

---

For center on-grade position
or offset on-grade position

Rubber over mold

---

Protects the receiver when
accidentially dropped

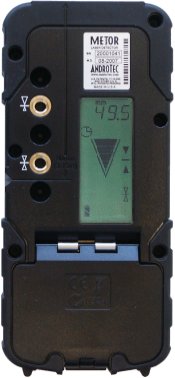

Rear Display

---

Shows elevation information,
receiver settings and status

Back side
